Pop-up sprinklers are a convenient and efficient way to water your garden. Each pop-up sprinkler comes with a pre-installed nozzle, and understanding its specifications is key to setting up your irrigation system correctly.

Sprinkler and Nozzle Information

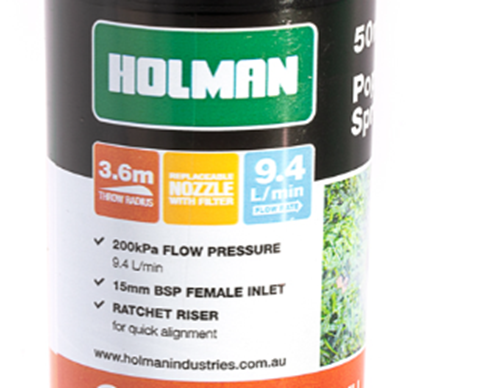

On the body of your sprinkler, you’ll find important details such as:

• Flow Rate – Measured in litres per minute (LPM), this tells you how much water the sprinkler uses.
• Throw Distance – Indicates how far the water will reach.
• Nozzle Type – This will specify whether the nozzle is fixed or adjustable

•

•

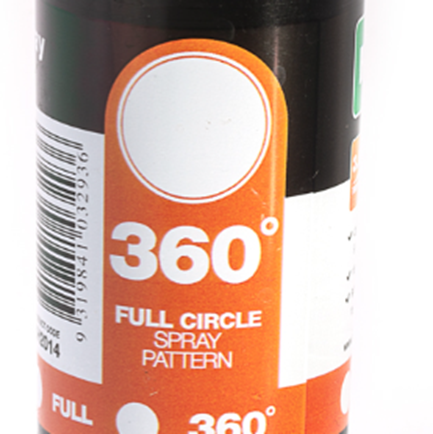

Fixed Nozzles

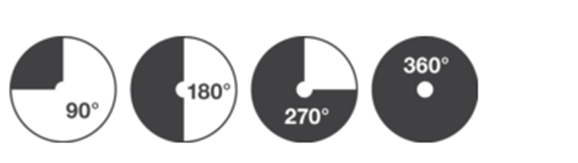

These come in preset spray patterns:

• ¼ circle
• ½ circle
• Full 360° circle

•

Adjustable Nozzles

These can be set to spray at any angle between 0° and 360°, offering more flexibility for custom watering zones.

Our sprinklers use female threaded nozzles, which means they can be interchanged with any other female threaded nozzle for added versatility.

Explore Our Range

Click the links below to browse our selection of pop-up sprinklers and nozzles:

• Pop up Sprinklers Archives - K-Rain
• Spray Nozzles Archives - K-Rain
• Pop up Sprinklers and Nozzles - Holman Industries

Planning Your System: The Bucket Test

Before installing pop-up sprinklers from a garden tap, it’s essential to perform a Bucket Test to determine your available water flow. This helps you decide how many sprinklers can run on a single line.

Important: If you plan to use a tap timer or manifold, perform the test with it attached, as it affects the flow rate.

How to Perform the Bucket Test

1. Turn your garden tap on full.
2. Place a bucket under the flow.
3. Time how long it takes to fill.

4. Use the Bucket Test Calculator to determine your flow rate in LPM.

   Flow Rate Test DIY with Bucket - Holman Industries

   Sprinkler Water Usage Guide

5. Sprinkler Type	Water Usage (LPM)
   Full Circle (360°)	9.4 LPM
   Half Circle (180°)	4.6 LPM
   Quarter Circle (90°)	2.4 LPM



   Example Setup

   If your tap provides 25 LPM, you could use:

   1 x Full Circle @ 9.4 LPM

   2 x Half Circle @ 4.6 LPM

   3 x Quarter Circle @ 2.4 LPM

   Or any combination that does not exceed your total flow rate.

   Need Help Planning?

   Use our DIY planner to get started with your irrigation layout:

   DIY Irrigation Plan: Pop-Up Sprinklers with PVC Pipe

   For further assistance, feel free to contact our support team at:
