This guide explains how your display shows hourly and daily rainfall data, and when each view appears.

PLEASE NOTE, YOU CAN CYCLE THROUGH ALL YOUR RAINFALL READINGS USING THE HIS (history) BUTTON ON THE BACK OF THE SCREEN.

🔄 Automatic Display Switching

Your screen will automatically switch between Hourly and Daily views based on rainfall activity:

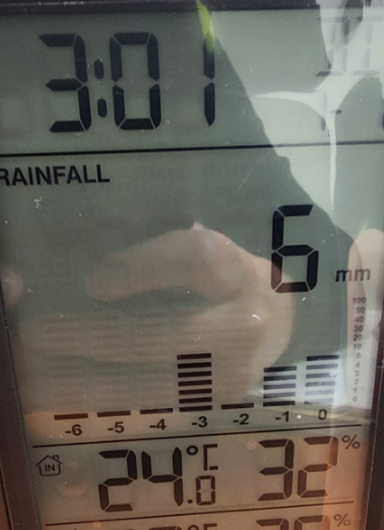

⏱️ Hourly View (During Rainfall)

• When the unit detects rainfall, it will switch to the Hourly display.
• This view shows:
  • Rain recorded over the past hour
  • A history graph at the bottom of the screen displaying recent rainfall

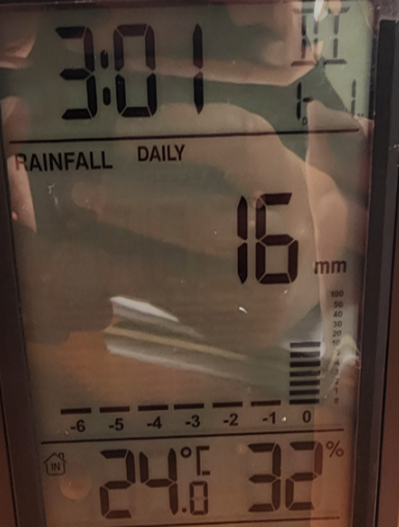

📅 Daily View (No Recent Rain)

• If no rainfall is detected for 30 minutes, the display will revert to the Daily reading.
• This view shows:
  • The total rainfall recorded for the day

=

⚠️ Important Information

• The Hourly rain reading can be accessed by using the HIS (history) button on the back of the screen.
• It will only appear automatically when rainfall is detected.
