Efficient Watering for Medium to Large Gardens
The 7700H Traveling Tractor Sprinkler is designed for domestic use in gardens up to 1100sqm. With proper care, it can last two or more seasons, based on 2–3 watering days per week.
🛠️ Getting Started
-
Best Terrain: Performs best on flat ground.
For sloped areas, run the sprinkler horizontally across the incline for best results. -
Setup Guide:
📺 Watch our video tutorial:
Solid Metal Travelling Sprinkler – Holman Industries Solid Metal Travelling Sprinkler - Holman Industries
⚙️ Troubleshooting & Maintenance
If your sprinkler is ticking or moving slowly, it may need cleaning or part replacement.
🔧 Common Fixes:
- Clean the gears and drive shaft
- Replace the internal shaft or motor assembly if worn
🛒 Order spare parts here:
Travelling Sprinkler Spare Parts - Holman Industries
🧰 Servicing the Drive Shaft
Follow these steps to inspect and clean the drive shaft:
- Remove the spray arms and black plastic T-Bar from the top.

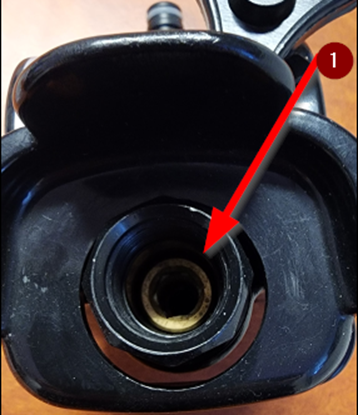

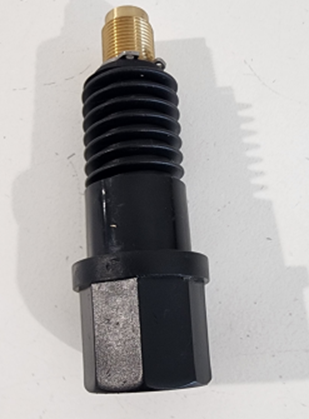

- Use a 10mm Allen key to remove the brass hex shaft (drive shaft).
-
Inspect the shaft:
- ✅ If undamaged: lubricate the screw section with Vaseline
- ❌ If damaged: replace the shaft
- Reassemble and test the sprinkler.
🧼 Cleaning the Gearbox
If you notice build-up or damage:
- Remove the back wheel assembly to access the gearbox.
- Clean with CLR and a toothbrush to remove mineral deposits.
💡 Tip:
Keeping the drive shaft hand-tight and lubricated helps prevent leaks and mineral build-up.
